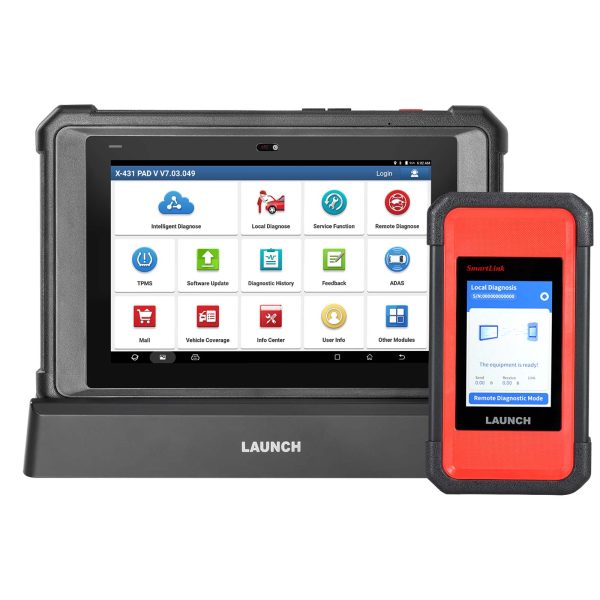

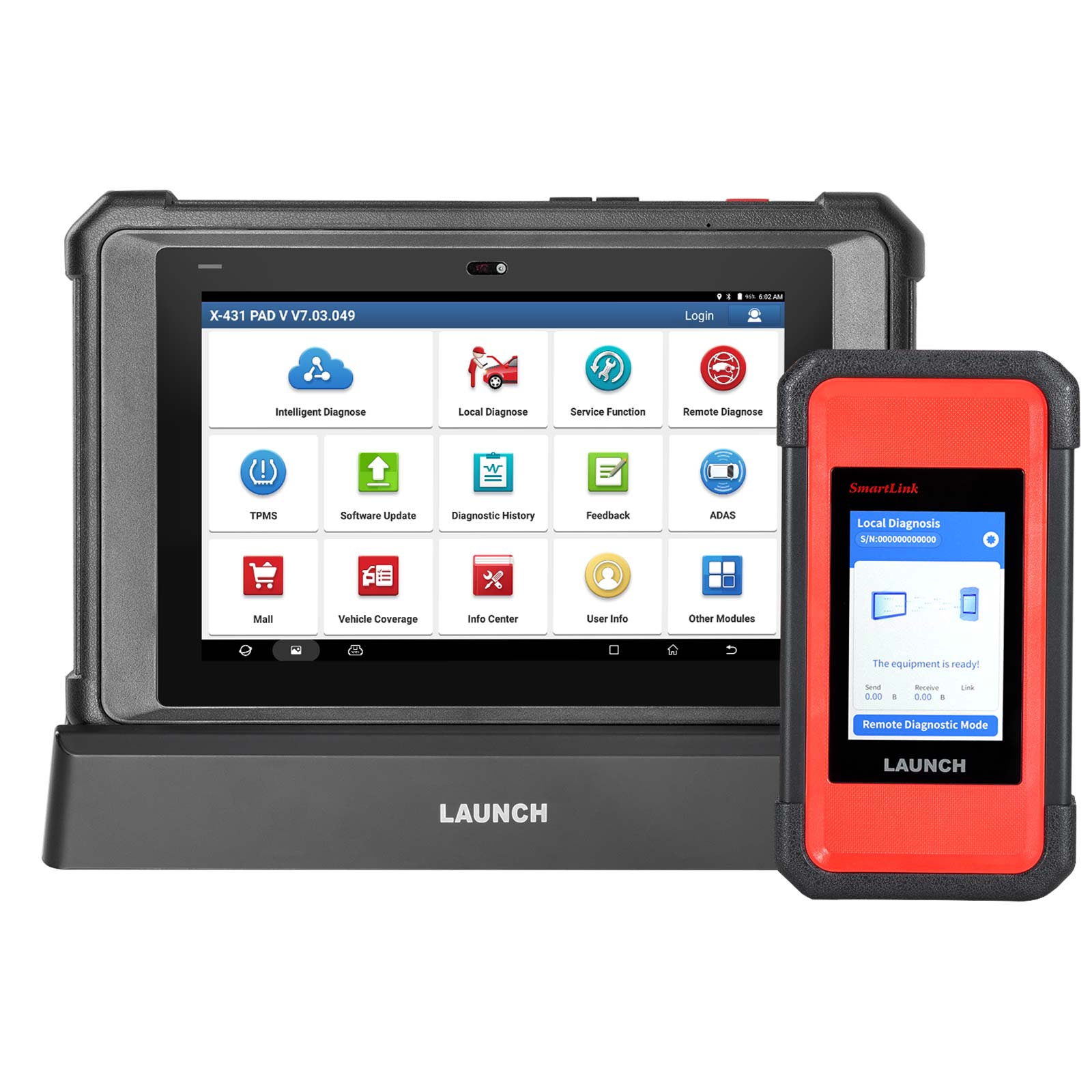

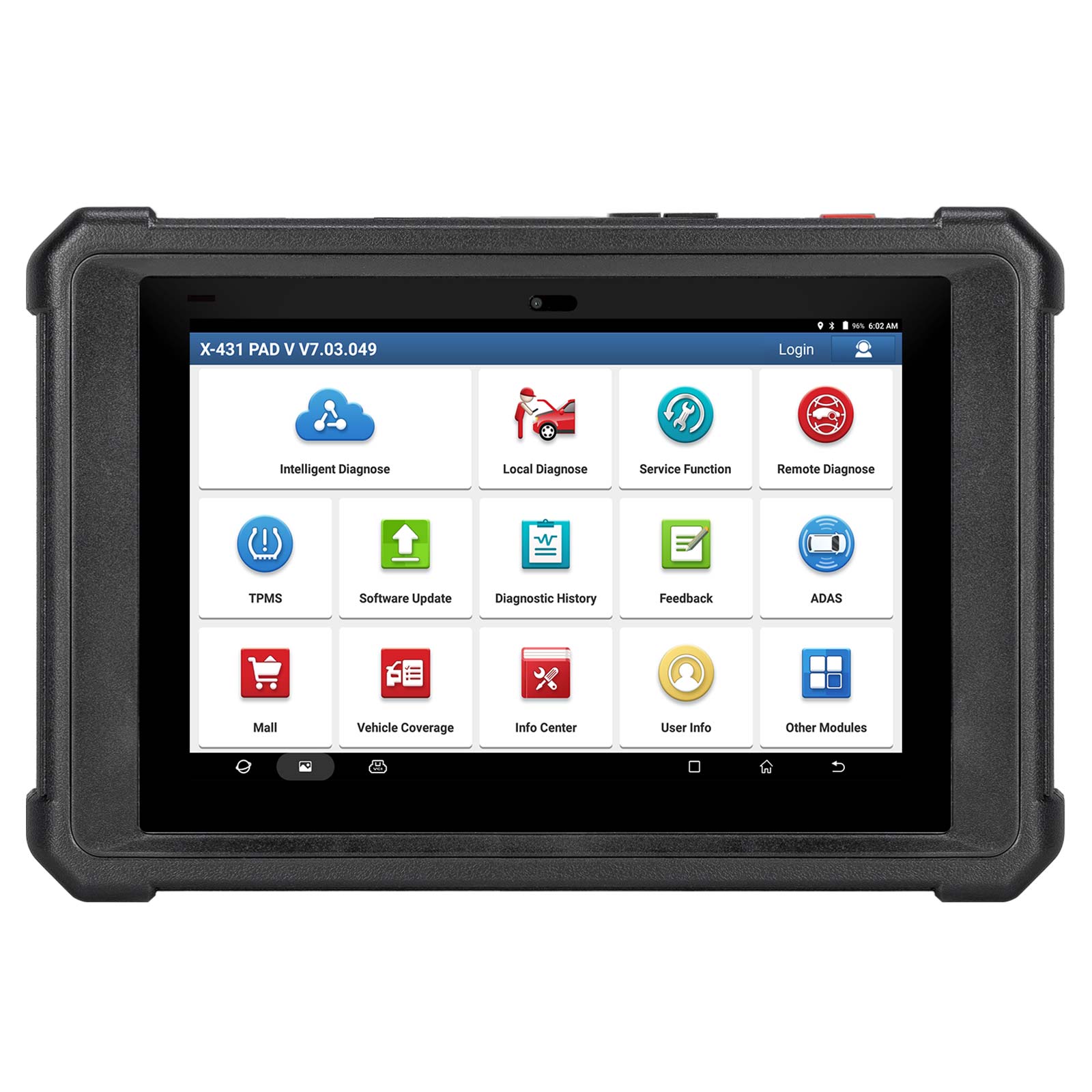

LAUNCH X431 PAD V Elite ECU Online Programming & Coding Scan Tool, Full System Diagnostic Scanner Support Topology Map,39+ Reset Functions

Description

LAUNCH X431 PAD V Elite ECU Online Coding & Programming Diagnostic Scanner, Support Bidirectional Control, J2534 Programming, Topology Map, 60 Free Reset Functions

LAUNCH X431 PAD V ELITE comes with the all-in-one features, Perform ECU Reprogramming, all services functions ,Bidirectional Contral ,ADAS calibration function, TPMS service, and 8 extended modules functions. New Smartlink C VCI powers technicians a new diagnostic level without the limitation of diagnostic functions, tools, and vehicle types.

LAUNCH X431 PAD V ELITE Highlights:

1. ECU/ECM Online Programming & reprogramming for 30 global car brands .
2. The Advantages of LAUNCH X431 Tools about the Dealership-level ECU Programming & Coding Functions: Backup/Recover ECU Data;Upgrade ECU, Manual & Automatic Options; Aftermarket Installation; Modification/Changeover
3. Online Programming  J2534 Reprogramming Using Smartlink C
Note: Please r each us to get the “X431 PAD V online programming activation method” & the instruction on how to use VPN to bypass IP restrictions to gain access to this feature for more models.
Note: Reach us to get the J2534 Operation manual.
4. Topology Mapping
5. Supports gasoline cars and diesel heavy-duty trucks with Smarlink C (need to purchase truck software)
6. Support EV Diagnostics : Electric Vehicle HV System & Battery Pack Diagnostic,repair and maintain the battery packs. （optional add-on)
7. Support almost automotive communication protocols CAN/CANFD/DoIP and automotive communication standards J2534/D-PDU/RP1210 .Support 200 global brands,car makes coverage till 2024, Compatible with BMW, Benz, VW, Audi, GM, Ford, Chrysler, Toyota, Nissan, Honda, Land rover etc. Full system vehicle coverage for U.S., Asian and European markets over 200 Global brands, which is continually updated
8. 2 Years Free Update Online, 2 Years free update with high update frequency, new features/cars released monthly, one-Touch update via WiFi to enjoy more functions, get wider available vehicle coverage, add more languages, and improve the performance. Competitors have no software maintenance for a long time, vehicles model/ functions update less support less
9. New Function: ODO check and ODO check , Reset MSVIN
10. 25 Free Languages Supported

Notice:

Global Version for Customers outside the UK and EU countries
UK/EU Version for UK/EU Countries customers

Expand functions:

X431 HDIII: enlarge diagnostic services to 24V heavy-duty trucks.
X431 BST360: Monitor vehicle battery health status.
Video Scope: Check the hard-to-reach parts (pump, engine, pipes, etc).
X431-PROG3: For advanced key programming & module clone.
ADAS mobile/PRO: Calibrate driver assistance systems.
WiFi Printer: To print out diagnostic reports, live data, and other information without taking too much time.
Scopebox: To quickly acquire circuit signals.
Sensorbox: To simulate vehicle sensor faults.
Multimeter: Allow you to measure the physical parameters such as voltage, resistance, frequency, etc.
Heavy Duty Truck Software License : for gasoline cars and diesel heavy-duty trucks with Smarlink C

Impressive Hardware,Complete your Repair Work at Ease.

Android 9.0 allows fast boot-up within seconds and multitasking. > Extraordinarily 8-core Cortex-A53 Processor (2GHz) boosts your speed of programming and diagnostics. >Thin,lightweight,and portable tablet-style design, with a capacitive 10.1-inch touchscreen that is sensitive to your every gesture.

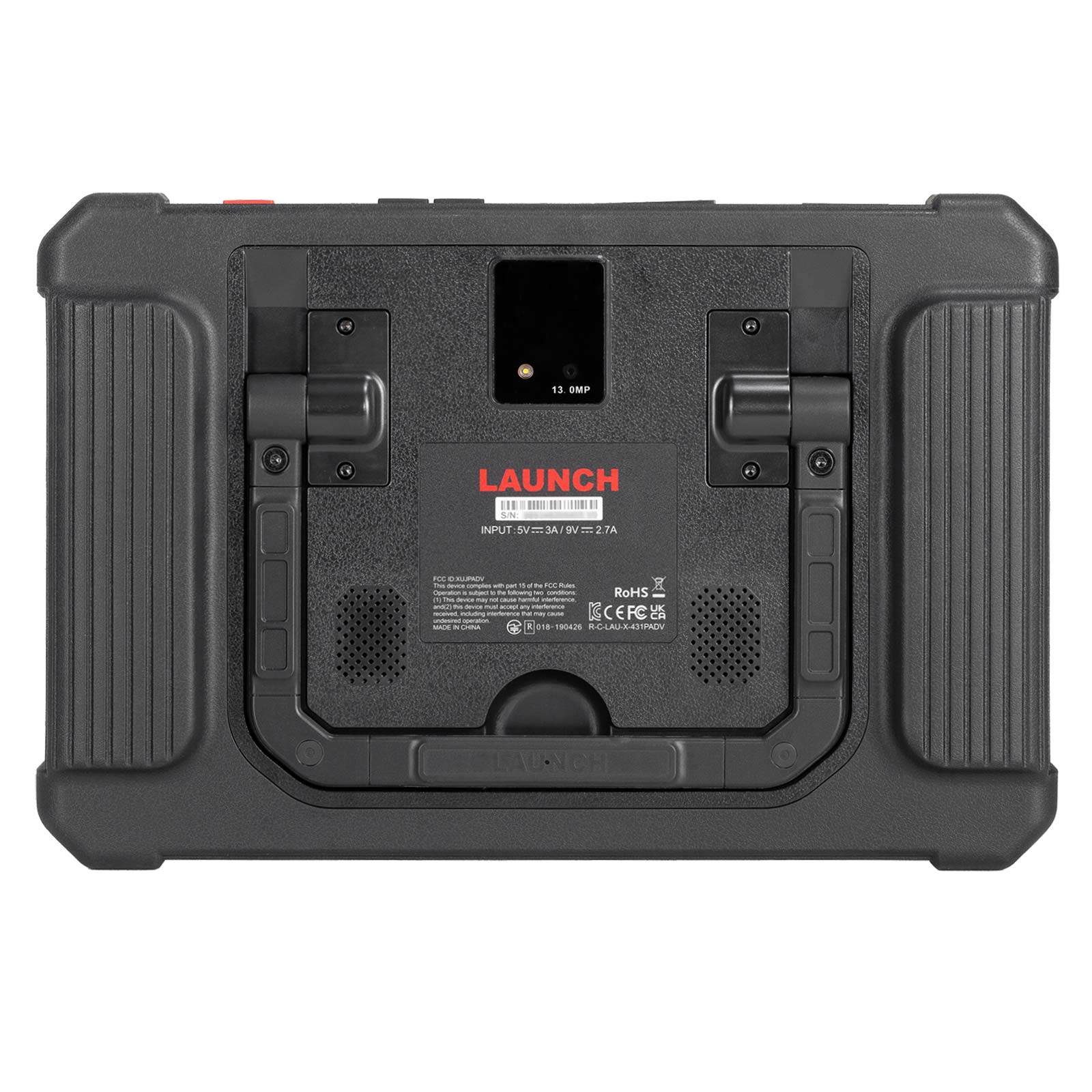

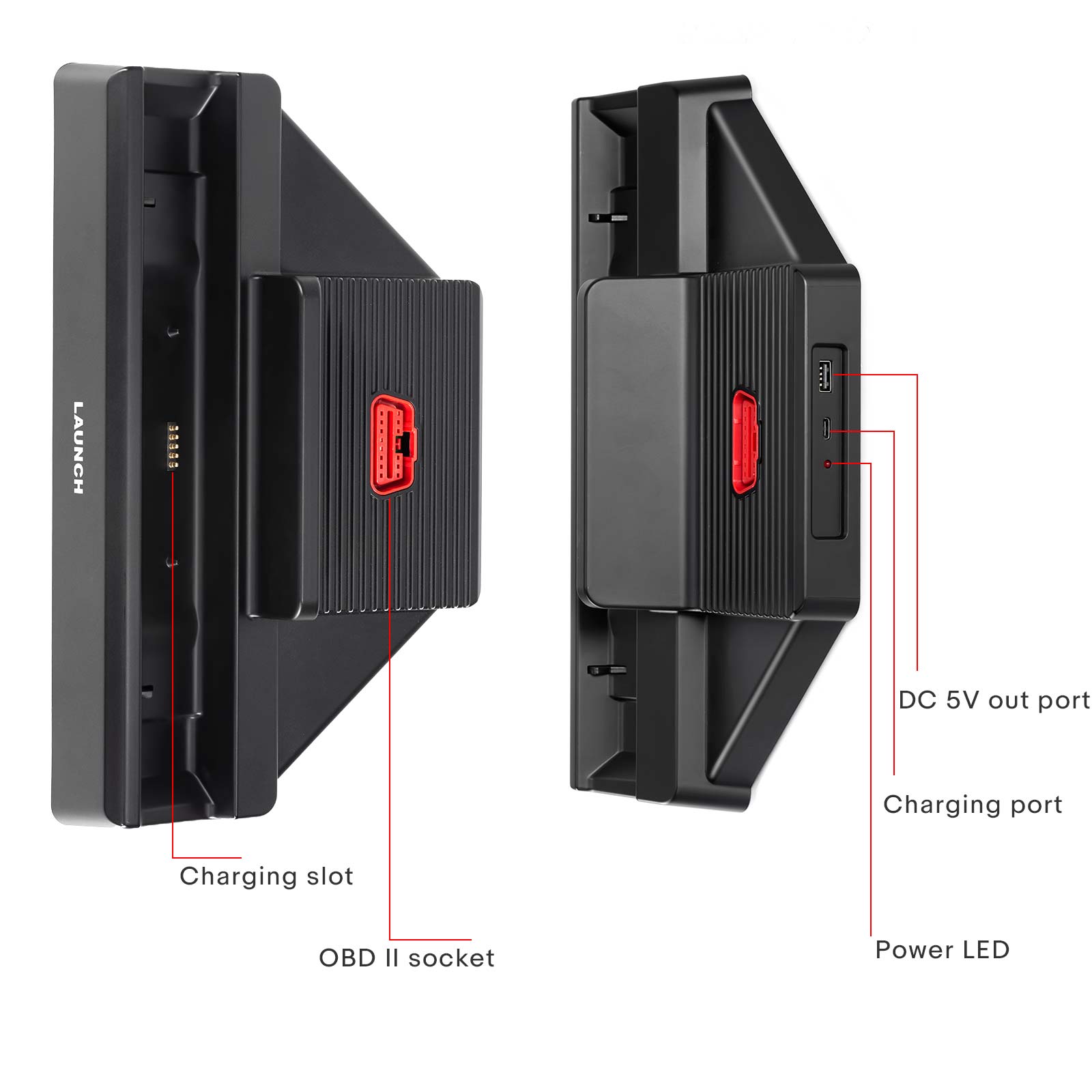

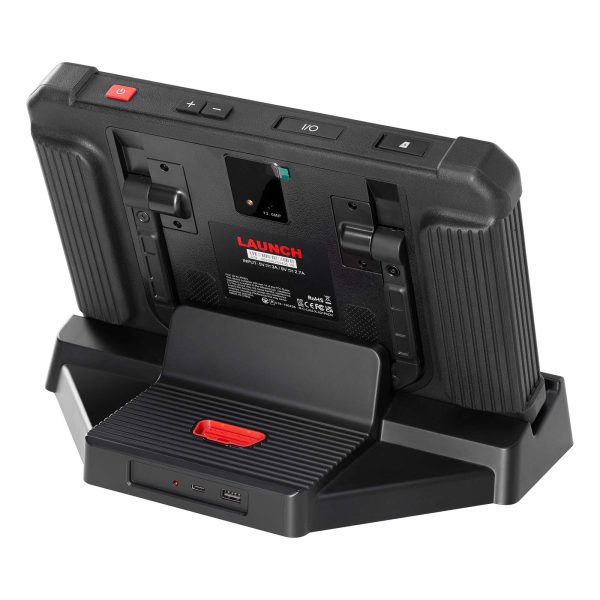

180° adjustable kickstand Patented Charging Dock Station gorilla glass provides exceptional damage resistance to the scratches.>The internal 4G 128G (256G expandable) onboard memory is a great plus for material storage.

An 35568mwh rechargeable lithium-polymer battery enables up to 20 hours of continuous operation. >USB type A/USB type C,Micro-SD, Micro-SIM slot (LTE version) >More flexible Connection :support 3 connection ways:WIFI/USB/BT, dual frequency 2.4/5GHz, 5G Wi-Fi communication, >QC3.0 (Quick Charge 3.0) is a fast charging technology for 4X faster charging speed than other Launch scanner .

One is Enough for most of repair shops

ECU ONLINE PROGRAM ECU CODING J2534 PROGRAM (NO IP LIMITED)

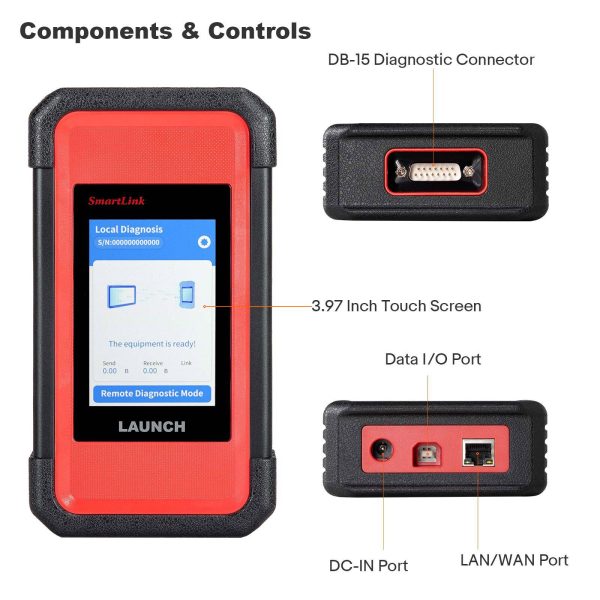

With smartlink c, launch x431 pad v automotive scanner can compliant to D-PDU, SAE J2534 & RP1210 to update OEM software, replace the existing software/ firmware in ECU, fix ECU parameter loss, programming new ECU and fixing software-controlled drivability issues and emission issues.it can do ecu programming for 30 car brands,including for VW, for Ford,for Audi, for BMW, for Hyundai, for Kia, for Land Rover, for MG, for Benz, for Porsche, for Renault, for Seat, for Skoda, for Subaru and more.reach us to get the car coverage list.

When you need to do online programming?

1. Unprogrammed blank module / Control module not coded
2.The module data record is lost and the control unit is damaged
3.Fuel Quality defective Firmware Upgrade
4. Software upgrade/part number upgrade

LAUNCH X431 PAD V is an excellent and cost-effective programming tool. It has many functions that other scanner do not have, includings:

1. support for programming backup/recovery (used with x431 G3).
2. part number upgrade
3.automatic identification of part numbers
4.backup and recovery functions.
5.supports manual programming for Volkswagen/Audi/Benz
6.Audi Fule Quality Defect Firmware Upgrade
7.online code setting
8.online matching and calibration
9. online parametric configuration functions

How to Unlock the ONLINE PROGRAMMING FUNCTION?

1. You can downloads the latest version of software from the online server database through Internet access (this procedure is done automatically when the scan tool is connected to the Internet, so there is no need to check for software updates yourself), and reprograms the newest version into the vehicle’s ECU.

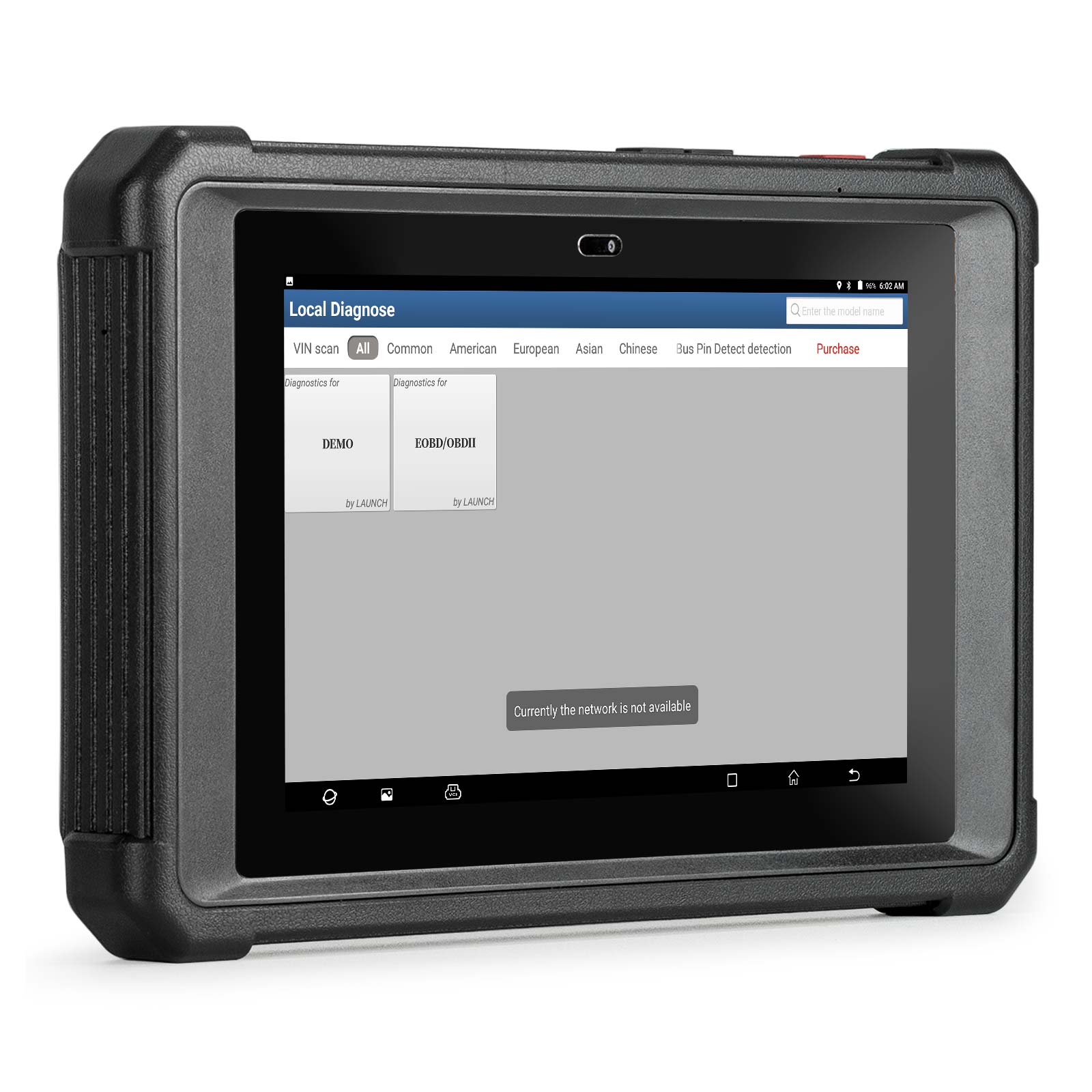

2.Click Local Diagnose menu>Choose Porsche model>Find the online function>No online pro~gramming function on the menu>Go back to the main menu>Click other Modules>Click the Bulit-in apps above>Click files>Click lntrnal Storge>Click cnlaunch folder>Click X-431 PADV folder>Click assets folder>Drop down to find the StdCfg.ini file>Click on the “ES Note Editor” file manager>Drop down>Find OnlineFlash and Flash>Select the Edit option in the upper right corner>Start to change data>Change OnlineFlash=0 to OnlineFlash=1>Change Flash=0 to Flash=1>Save it after modification.>Go back to the diagnostic menu to get the online programming function

Why is the LAUNCH X431 PAD V scan tool more powerful than other J2534 tool?

1. The X431 PAD V online programming does not require expensive online accounts, just connect to WIFI, saving maintenance costs. J2534 programming tool needs to download OEM software and login account (annual subscription is required).
2. smartlink c adater adopts dual WIFI communication to improve programming speed, thereby reducing the possibility of programming errors
3. When using J2534 tool, in addition to the connector, it is also necessary to consider issues such as adapting the computer, installation costs, and complete functions, which is not cost-effective.

What is the difference between X431 PAD V ELITE and X431 PAD V?

1. X431 PAD V ELITE is an upgraded version, optimized and upgraded hardware.
2. X431 PAD V ELITE comes with CAN FD cable , but without car adapter and cable.

Get Full Control Over Vehicle’s ECU,Deep Diagnosis Your Vehicles!!!

Deep Diagnosis Your Vehicles: access to ALL vehicle systems and subsystems, to perform a comprehensive scanning on ECUs:

Engines/ Auto Transmission/ Airbags/ Immobilizer/ K~ey Coding/ ABS/Cruise Control/ Instruments/ Self Leveling Suspension systems /Seats/ Doors/ Gateway/ Steering Angle/ Air Suspension/ Body Systems/ Electronic Power Steering & Motor Assisted/ Power Steering/ Tyre Pressure/ Rain Sensors/ 4WD System Stabilizer/Intelligent Parking Assist etc

Full OE-LEVEL Bi-Directional Control Scan Tool(Active Test):

enables you to transmit control commands to operate the vehicle systems, without using the vehicles’ controls, to verify system input and output such as:Turn on the radiator fan / Turn on interior & exterior lights / Turn on sound horn / Modulate the throttle / Open & close windows / Operate mirrors / Test door lock actuators/ Injector Test ;Turn Off ACC Lane Keeping Assist System (LKAS) ;Turn ON/OFF Front and Rear side ACM Solenoid , turning the fuel pump on and off, cycling the a/c ,clutch on and off, Left clutch electromagnetic coil test，Acceleration Device Test，Oil Pressure Control Test，DYNAMIC camera aiming，Vehicle level position calibration, Brake Vacuum Pump, Inlet and Outlet Valve tests, Open Brakes tests, Parking Brake Motors, Wheel Speed Sensor Supply, PARKING BRAKE tests,Suspension Level Control Calibration( rodeo test).

OBDI&OBDII Connectors and cables ,cover almost all vehicles in the world: LAUNCH X431 PAD V automotive scanner comes with 15 obd1 Connectors :TOYOTA-17, TOYOTA-22,HONDA-3, MAZDA-17,FORD-6 1,NISSAN-14 16,SSANG YONG-20 , CHRYSLER-6, SUBARU-9 , KIA-20, DAEWOO-12 ,GEELY-22 ,GMVAZ-12, DAEWOO-12, BMW-20, BENZ-38.UNIVERSAL-3 diagnostic connector type.12 Cables : GAZ , OBDII-16 EXTEND CABLE , SSANG YONG-14, SUZUKI-3, AUDI-4, FIAT-3, MITSUBISHI HYUNDAI-12 16, OBD1 ADAPTOR, BENZ-14, NISSAN-14 16, DAIHUATSU-4, POWER CABLE CLIPS.Gigabit networks cable.

More interfaces: USB Type C/USB Type-A/TF slot,OBD I Adaptor BOX transfer line,Double clamp power line,The cig-arette lighter line,QC3.0 fast charging adapter

ATTENTION : The connector HAINAN MAZDA -17 2 socket are removed from the box because it only work in China. since it is removed when they manufactured by Launch company .

Modification Car Diagnostic Tool

To improve car performance and enhance your experience as a driver or owner, you can change or add the functions by changing or adding certain modules that haven’t already in your vehicle, such as adding a satellite navigation system, courtesy lamps, car phone, parking sensors, atmosphere lights, etc.；Compatible with Volkswagen, Audi, BMW, etc.

Online Parameterization/Flash Hidden Functions: has function help and expert mode, which can guide the operation efficiently

1. Activate the high-level functions: customizing the interior lights; automatic door locking at a particular speed; activating adaptive headlights; changing the brightness of the dashboard; reversing the tilt mirrors; etc.
2. Disable the annoying functions: deactivating the auto start-stop; injector buzz sounds; locking seat belt warning sounds; changing the chimes; automatic door locking at a particular speed; mirror auto folding and unfolding; etc.

Guided Function for VAG vehicles

LAUNCH X431 PAD V car scan tool provides step-by-step repair guidance for technicians.the function of guiding the use of the product to prevent the car setting caused by wrong operation.Compatible with VAG series vehicles(Volkswagen / Audi / Skoda / Seat etc.

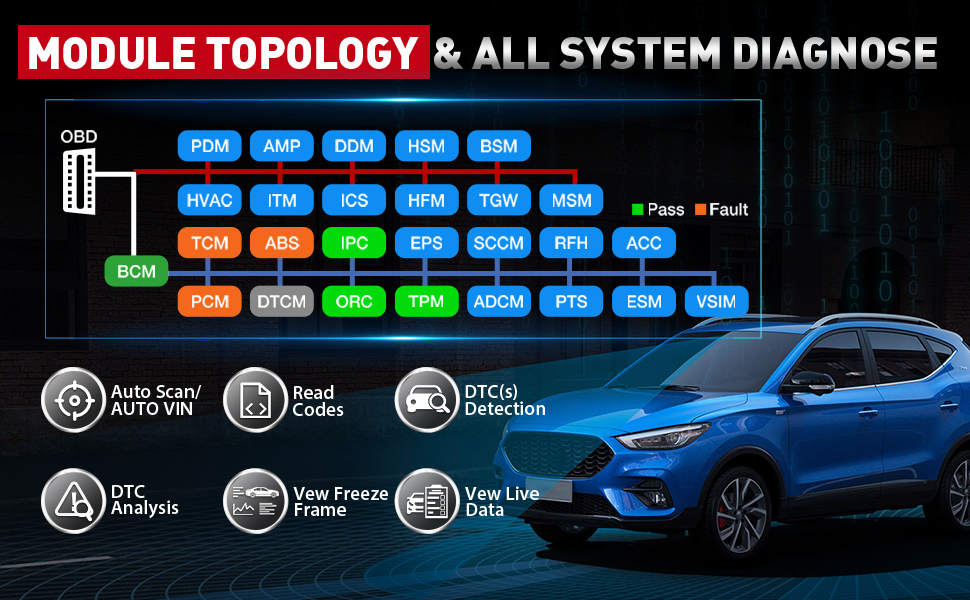

Provides Module Network Structure Topology,Better to let you know the car clearly and simple !

Color-coded topology displays all system status in one page!!! View structure of communication between modules

OEM Topology Mapping, Streamline your Repair Analysis

1. With topological diagram Function,it can displays the entire system through the Topology Map to glance all the modules with trouble code, which is easy to locate faults and causes. Up to 5 ways of DTC display: Easy View of All Systems
2. Topology, list, separately click into the control unit, Intelligent Diagnostics details, vehicle diagnosis report, among which Topology is the newest and innovative configuration.
3. Color-coded topology displays all system status in one page and structure of communication between modules. Communication between modules and status can be spotted in a glance and you can locate faults more intuitively to solve problems quickly! Overall, the “topology mapping” function on the LAUNCH X431 can be an extremely useful tool for mechanics, DIY enthusiasts, and anyone else who needs to diagnose and repair vehicle faults. NOTE: Topology is not universal to all the vehicles.

PMI(Proarammable Module Installation)

Support PMI function, Compatible with Ford /Lincoin/ Mazda etc. This function is used when you need to replace a module (replace ECU) or initialize a module.No need using the J2534 or buying a subscription.

Fault Guidance Function

Unlike other scanning tools, the X431 PAD V scanner has a unique fault guidance feature. It is designed to help diagnose and troubleshoot vehicle faults more efficiently and accurately by providing detailed information about common faults, including potential causes, symptoms, and possible fixes.
With this feature, when a fault code is detected, the device will search its database for information related to that code and provide a detailed report to the user. This report may include information about similar faults that have been reported on the same vehicle model or make, as well as any known fixes or workarounds. In addition to providing useful information about vehicle faults, it can also help users to save time and reduce the need for trial-and-error methods, by providing clear instructions for troubleshooting and repairing vehicle faults.

Pre-Scan and Post-Scan function, a truly practical function for car workshops:

Step 1. Auto SCAN the Vehicle: the Auto VIN function can automatically identify the vehicle and all equipped systems, codes and code details will be listed.
Step 2. Print Pre-SCAN Report with customized with shop and vehicle information.
Step 3. Repair Vehicle: creates efficient repair plan from the start.
Step 4. Auto SCAN Repaired Vehicle: ensures no new faults were created during repair and no DTCs are present at completion. Step 5. Print Post-SCAN Report: proves all DTCs on Pre-SCAN report are fixed.

LAUNCH X431 PAD V Diagnostic Tool Supports More than 60 special Reset functions.( Keep growing with UPDATES)

launch x431 pad v auto diagnostic tool has been equipped with over 60 commonly used special functions to cope with the complex issues hidden in the systems after repairing.✔️Get full special functions on the diagnose menu.select diagnose menu>select your car model and year>select system> special function

Oil Lamp Reset: perform reset for a new calculation of Engine Oil Life system once changed the oil.
EPB Reset: Help replace and reset the brake pad.
BAT battery service(BMS): Clear the fault information of low battery and make it match again
D.PF service: Regeneration of diesel particulate filter systems.
Fuel Injector Coding: Write the new injector code into the car system for correct cylinder injection quantity.
TPMS service: Read TPMS data and point out issues related if there are any.
Suspension Reset: Adjust the vehicle body height sensor for level calibration.
A/F Reset: Set or learn Air/Fuel ratio parameters
Adblue Reset: Reset urea after the diesel exhaust treatment fluid is replaced or filled up.
Coolant Bleeding: Activate the electronic water pump
Language Change: Change vehicle system language.
Nox Sensor Reset: Reset catalytic converter learned value stored in ECU.

More functions: Stop/Start Reset,Seat Calibration,Transport Mode,Windows Calibration,AC System Relearn/Initialization,High Voltage Battery Diadnosis,GPF regeneration,Reset Fuel Alcohol Level,Reset Fuel Trim,VGT Reset,Reset Fuel Trim,E.GR Valve Learn,Crankshaft Position Variation Learn,Clutch Pedal Position Learn,Idle Learn,Fuel Economy Test,Fuel Alcohol Composition Reset,CBS Reset UDS etc,.(all functions are depending on the specific car models, not for all cars)

NEW ADDED 6 RESET FUNCTIONS ON Nov,2023: ECU RESER ,FRM RESET, CLUTCH RESET, GATE RESET, TURBO RESET, RISENSOR RESET

IMMO Keys

With the IMMO Keys function, LAUNCH X431 PAD V can add new keys, disable/clear information of the lost vehicle keys, and program the replacement key fob for most Asian and American vehicles, which come with low-grade anti-theft systems. Note: this function varies on the car model and the year.

PIN Detection Function

Pin detection can be used to detect the voltage of the vehicle OBD-II diagnostic socket pins and the supported protocol types to help technicians judge the OBD-II diagnostic interface.if the detection result does’t match the actual vehicle configuration,the corresponding pin may be faulty.

Fault Guidance Function

Unlike other scanning tools, the X431 PAD V scanner has a unique fault guidance feature. It is designed to help diagnose and troubleshoot vehicle faults more efficiently and accurately by providing detailed information about common faults, including potential causes, symptoms, and possible fixes.
With this feature, when a fault code is detected, the device will search its database for information related to that code and provide a detailed report to the user. This report may include information about similar faults that have been reported on the same vehicle model or make, as well as any known fixes or workarounds. In addition to providing useful information about vehicle faults, it can also help users to save time and reduce the need for trial-and-error methods, by providing clear instructions for troubleshooting and repairing vehicle faults.

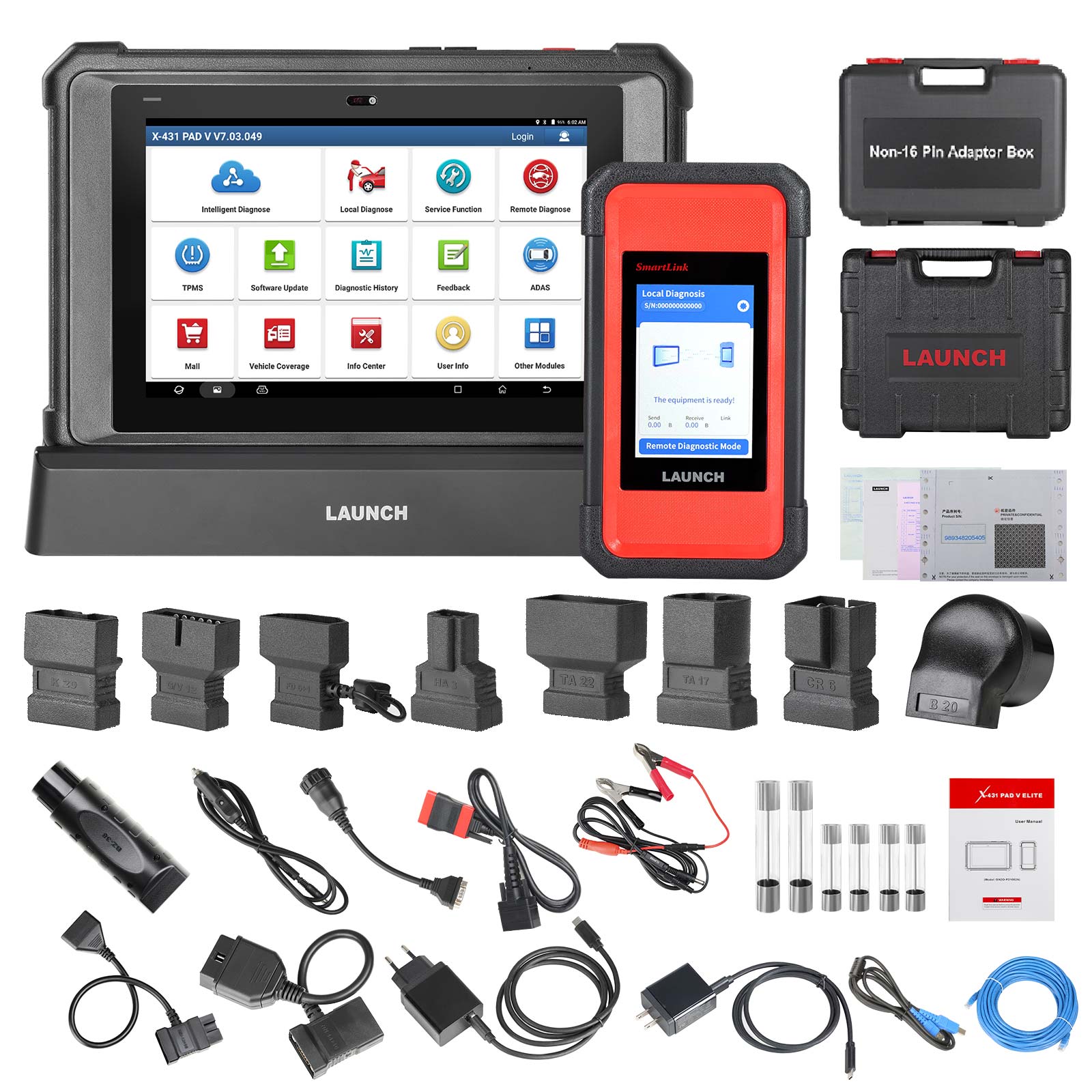

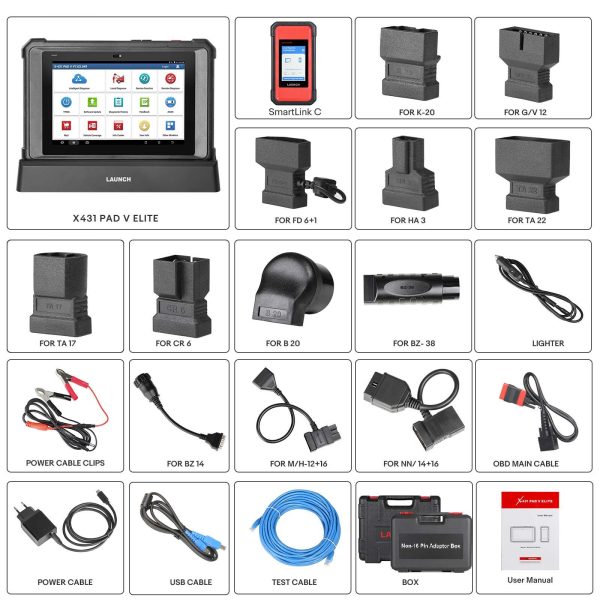

Package List

1pc x LAUNCH X431 PAD V ELITE tablet

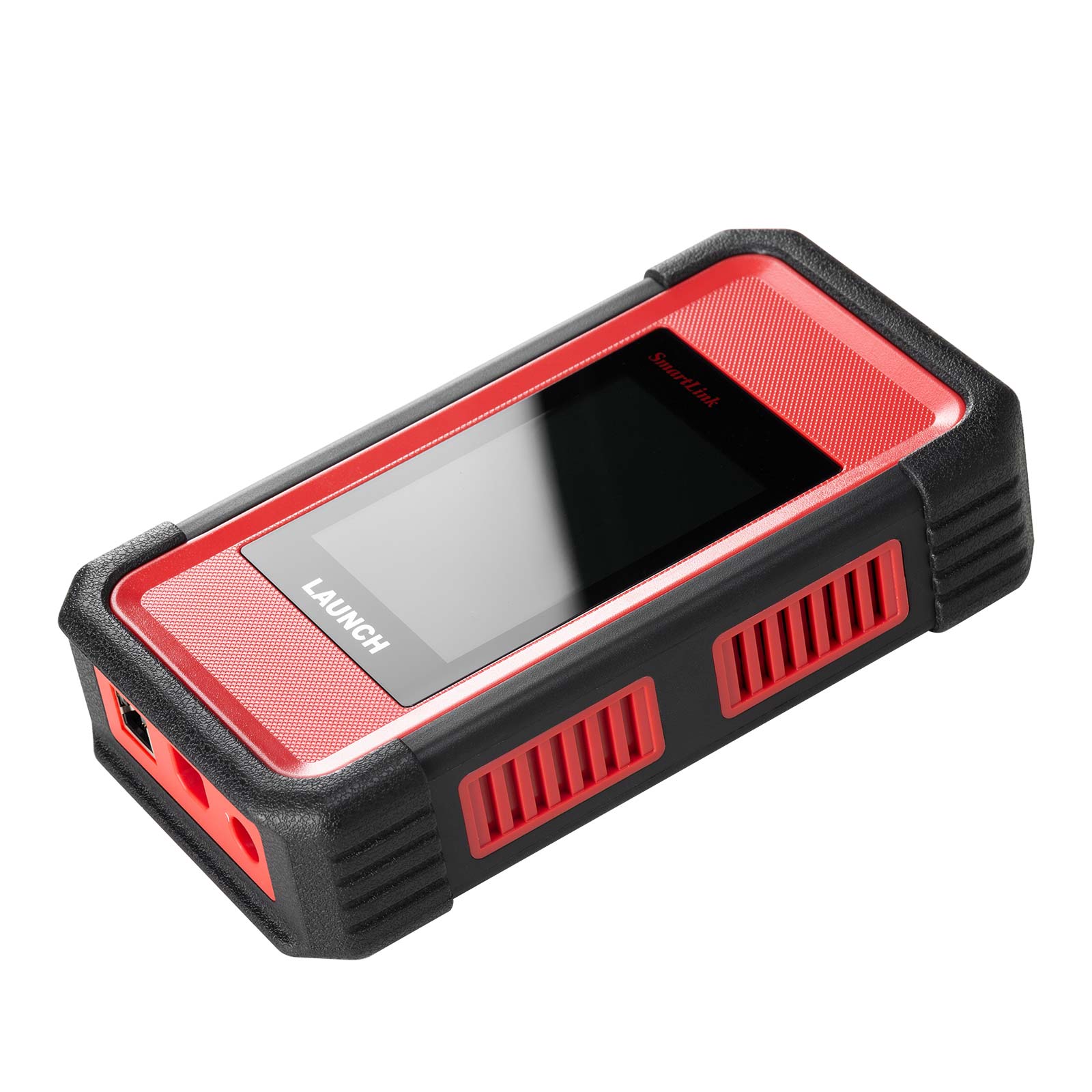

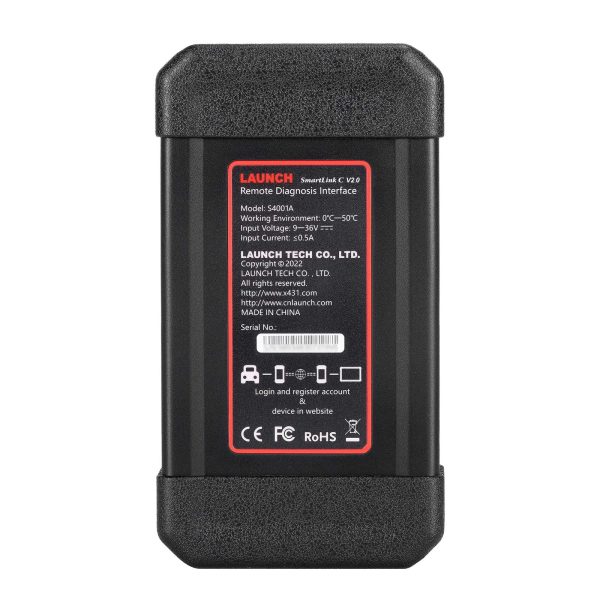

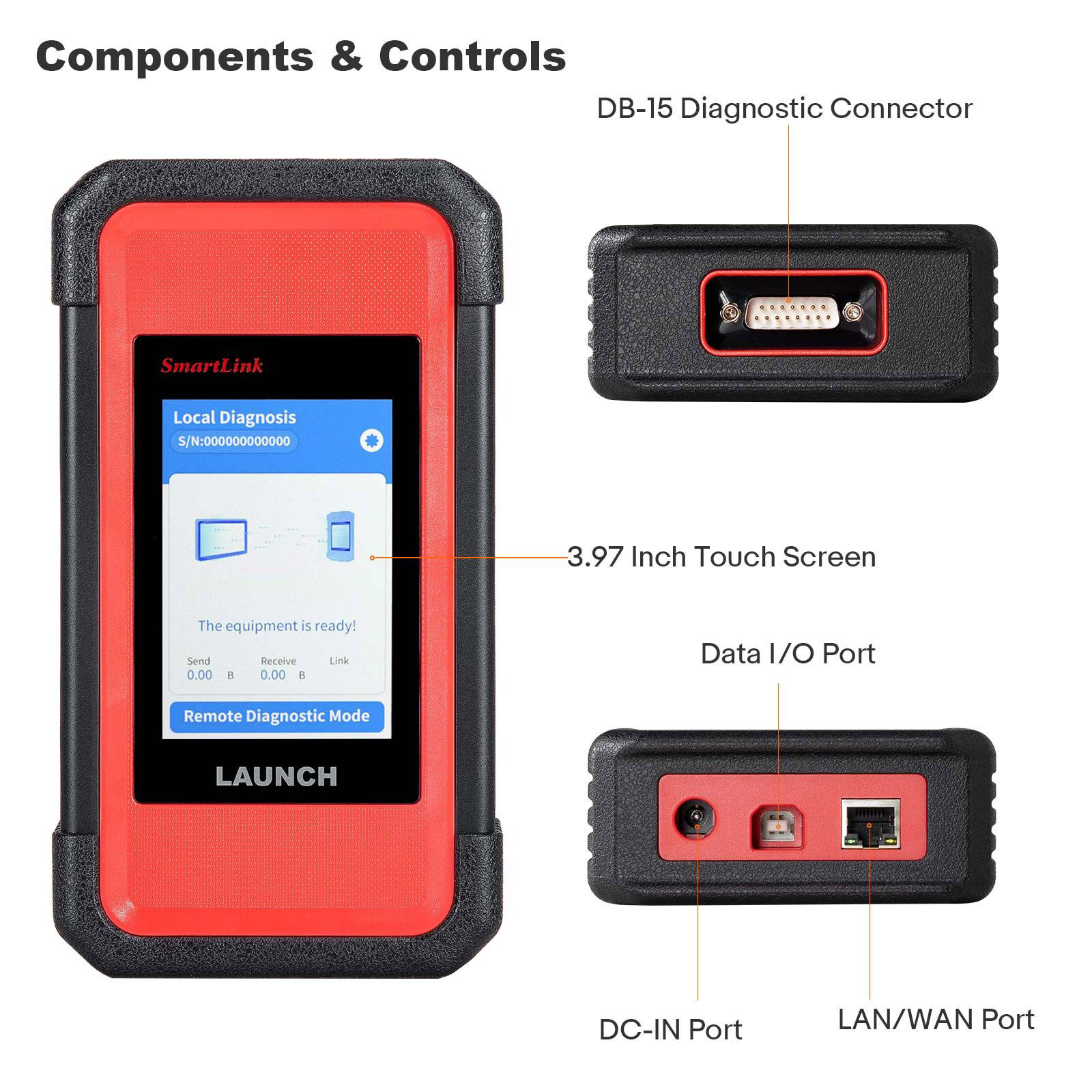

1pc x SmartLink C
1pc x for K-20 adapter
1pc x for G/V 12
1pc x for FD 6 1
1pc x for HA 3
1pc x for TA 22
1pc x for TA 17
1pc x for CR 6
1pc x for B 20
1pc x for BZ-38
1pc x for BZ-14
1pc x for M/H-12 16
1pc x for NN/14 16
1pc x OBD main cable
1pc x lighter
1pc x power cable clips
1pc x USB cable
1pc x test cable
1pc x power cable
2pcs x boxes
6pcs x fuses
1pc x EU standard power adapter
1pc x US standard power adapter
1pc x user manual
