LAUNCH X431 CRP919E Full System Car Diagnostic Tools with 31+ Reset Service Auto OBD OBD2 Code Reader Scanner

LAUNCH X431 CRP919E Full System Car Diagnostic Tools with 31 Reset Service Auto OBD OBD2 Code Reader Scanner 2 Year Free Update

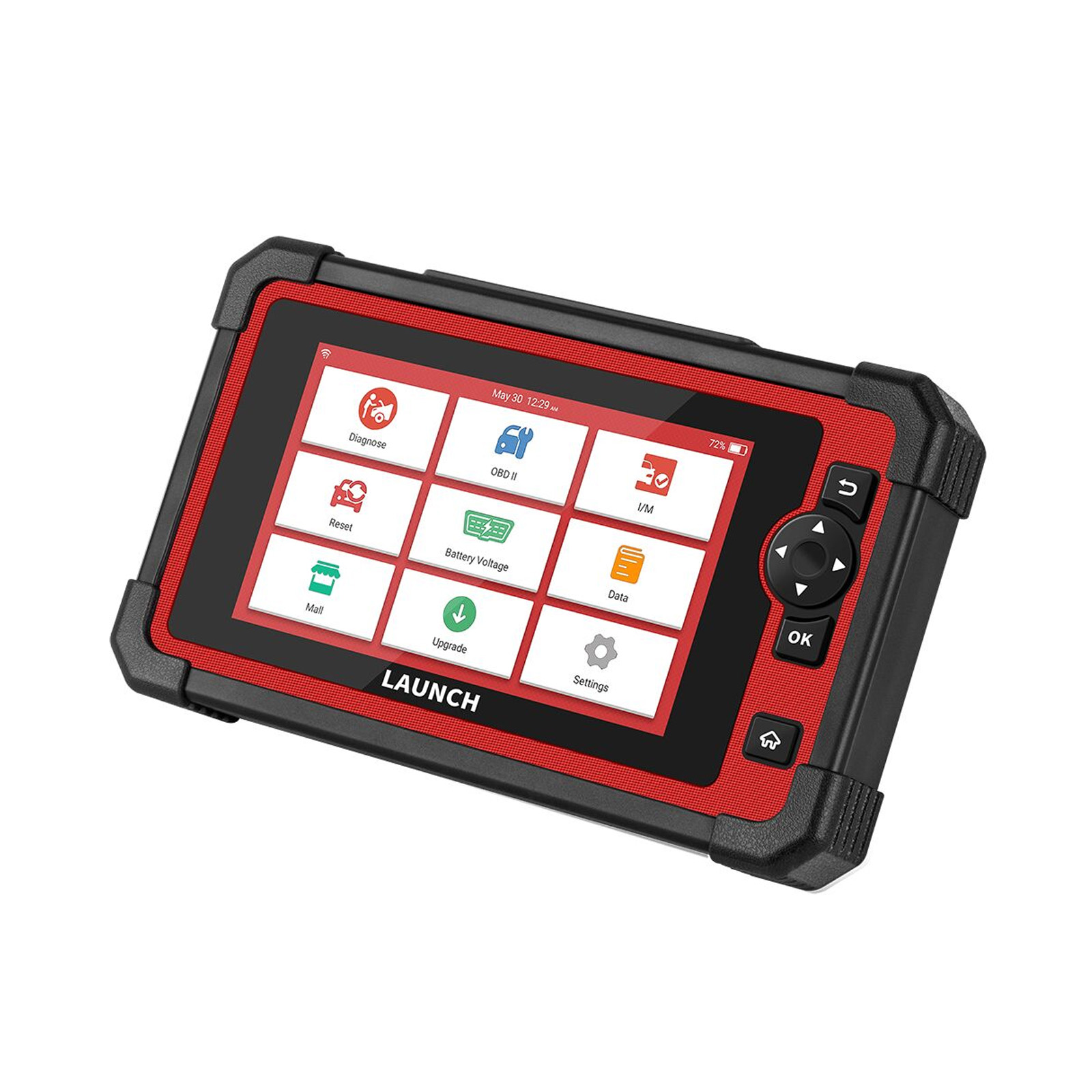

LAUNCH CRP919E is an intelligent and online diagnostic tool, which based on the Android platform. It has the OBD function that best meets the needs of the passenger car DIY market. It supports full-system basic function diagnosis of more than 70 models, and supports 31 special functions at the same time.

Hightlights:

1. Global Version, No Area Restrictions
2. With 2 Years Free Update Online: After 2 years, update Cost will be $399 for one year and $599 for two years. If you don’t want to update, the old software can still work too
3.DoIP & CAN FD with IMMO Antitheft:IMMO antitheft services enable technicians to any offer key programming and replacement services to customers who have lost or need a spare key.
4.Multilingual Supported: English, French, Spanish, German, Russian, Korean, Japanese, Portuguese, Italian, Polish, Dutch, Finnish, Czech, Swedish, Chinese
5.Compatible with BT360 Battery Tester & TPMS module: Can test all 6V and 12V 100-2000CCA batteries and Launch tpms sensors Relearn/Activate/Program.

CRP919E Functions:

LAUNCH CRP919E is with Bi-Directional Control capability and is capable of performing Active Tests to access vehicle-specific subsystems and component tests. The tester outputs commands to the ECU to drive the actuators in order to determine the integrity of the system or parts by reading the ECU data, or by monitoring the operation of the actuators, like EVAP test, Cylinder Deactivation, Cycling A/C Clutch On/Off, switch fuel injector on/off, cycling ABS motor pump, test car window, door, sunroof, wipers and etc to pinpoint fault locations easily and effectively.

It is mainly for the detection of license plates of CAN FD communication protocols such as GM, Jaguar, and Land Rover (reading fault codes, data streams and other special functions).

1> Oil Reset Service
This function enables you to reset the oil service for the engine oil life system,which calculates an optimal oil life change interval depending on the vehicle driving conditions and weather events.
lt needs to be performed in the following cases:
1. lf the service lamp is on, run car diagnostics first for troubleshooting.Afterthat, reset the driving mileage or driving time, so as to turn off the servicelamp and enable a new driving cycle.
2. lf the service lamp is not on, but you have changed the engine oil or electric
appliances that monitor oil life, you need to reset the service lamp.2> Electronic Parking Brake Reset
This function enables you to reset the brake pad after replacing the brake pad.lt needs to be performed in the following cases:
1.The brake pad and brake pad wear sensor are replaced.
2.The brake pad indicator lamp is on.
3.The brake pad sensor circuit is short, which is recovered.4.The servo motor is replaced.3> Steering Angle Calibration
This function enables you to reset the steering angle,after replacing thesteering angle position sensor,replacing steering mechanical parts (such assteering gearbox,steering column, end tie rod, steering knuckie), performingfour-wheel alignment, or recovering car body.
To reset the steering angle, first find the relative zero point position for thecar to drive in straight line. Taking this position as reference,the ECU cancalculate the accurate angle for left and right steering.4> ABS Bleeding
This function allows you to perform various bi-directional tests to check theoperating conditions of Anti-lock Braking System(ABS).
lt needs to be performed in the following cases:
1. When the ABS contains air.
2. When the ABS computer, ABS pump, brake master cylinder, brake cylinder,brake line, or brake fluid is replaced.

5> Gear Learning
This function enables you to perform tooth learning for the car, to turn off the MIL.
lt needs to be performed in the following cases:
1. After the engine ECu, crankshaft position sensor, or crankshaft flywheel isreplaced.
2. The DTC ‘tooth not learned’ is present.

6> IMMo Service
This function enables you to perform the anti-theft key matching function, sothat the immobilizer control system on the car identifies and authorizes remotecontrol keys to normally use the car.
lt needs to be performed in the following cases:
When the ignition switch key, ignition switch,combined instrument panel,ECU,BCM, or remote control battery is replaced.

7> Injector Coding
This function enables you to write injector actual code or rewrite code inthe ECU to the injector code of the corresponding cylinder，so as to moreaccurately control or correct cylinder injection quantity.
lt needs to be performed in the following cases:
After the ECu or injector is replaced.

8> Battery Maintenance System Reset
This function enables you to perform a resetting operation on the monitoringunit of vehicle battery, in which the original low battery fault information will becleared and battery matching will be done.
lt needs to be performed in the following cases:1. The main battery is replaced.
2. The battery monitoring sensor is replaced.

9> Diesel Particulate Filter (DPF) Regeneration
This function enables you to clear PM(Particulate Matter) from the DPF filterthrough continuous combustion oxidation mode (such as high temperatureheating combustion,fuel additive or catalyst reduce PM ignition combustion)to stabilize the filter performance.
lt needs to be performed in the following cases:
1. The exhaust back pressure sensor is replaced.
2. The PM trap is removed or replaced.
3. The fuel additive nozzle is removed or replaced.
4. The catalytic oxidizer is removed or replaced.
5. The DPF regeneration MlL is on and maintenance is performed.
6. The DPF regeneration control module is replaced.

10> Electronic Throttle Position Reset
This function enables you to make initial settings to throttle actuators andreturns the learned values stored on ECU to the default state. Doing so canaccurately control the actions of regulating throttle (or idle engine) to adjust theamount of air intake.

11> Gearbox Matching
This function enables you to complete the gearbox self-learming to improvegear shifting quality.
lt needs to be performed in the following cases:When the gearbox is disassembled or repaired.

12> AFS (Adaptive Front-lighting System) Reset
This function enables you to initialize the adaptive headlamp system.

13> Sunroof Initialization
This function enables you to set the sunroof lock off,closed when it rains,sliding / tilting sunroof memory function, temperature threshold outside the caretc.

14> Suspension Calibration
This function enables you to adjust the height of the body.
lt needs to be performed in the following cases:
1. When replacing the body height sensor， or control module in the airsuspension system.
2. When the vehicle height is incorrect.

15> EGR Adaption
This function is used to learn the EGR(Exhaust Gas Recirculation) valve afterit is cleaned or replaced.

16> Seats Calibration
This function is applied to match the seats with memory function that arereplaced and repaired.

17> Tyre Reset
This function is used to set the size parameters of the modified or replacedtire.

18> Coolant Bleed
Use this function to activate the electronic water pump before venting thecooling system.

19> AdBlue Reset (Diesel Engine Exhaust Gas Filter)
After the diesel exhaust treatment fluid (car urea) is replaced or filled up, ureareset operation is required.

20> NOx Sensor Reset
NOx sensor is a sensor used to detect the content of nitrogen oxides (NOx) inengine exhaust. lf the NOx fault is re-initialized and the NOx catalytic converteris replaced, it is necessary to reset the catalytic converter learned value storedin the engine ECu.

21> Ac System Initialization
AC system releam/initialization must be performed when the vehicle AC ECUor actuator is replaced or the ECu memory is lost.

22> High Voltage Battery Detection
This function is used for high voltage battery diagnosis and status informationdetection.

23> Windows Calibration
This function is used to perform door window matching to recover the ECuinitial memory, and recover the automatic ascending and descending functionof power window.

24> Language Change
This function is used to change system language of vehicle center console.

25> AF Reset
This function is applied to set or learn airlfuel rate parameters.

26> Transport Mode
To lower vehicle power consumption, user may perform the following operations: limit vehicle speed, not wake up the network for door open anddisable remote key etc. In this case, deactivating transport mode is needed torecover vehicle being normal.

27> StoplStart Reset
This function is used to open or close the automatic StartStop function viasetting the hidden function in ECU (The precondition is vehicle equipped withhidden function and hardware support).

28> Intelligent Cruise Control System Reset
This function is used to matching the intelligent cruise control module after it isreplaced or repaired.

29> Engine Power Balance Monitoring
This function is used to monitor crankshaft acceleration in the power stroke ofeach cylinder, to determine the relative power provided by each cylinder.

30> Gas Particulate Filter (GPF) Regeneration
This function is used to perform the GPF replacement or regeneration after the fuel consumption is increased and engine output power is reduced resultingfrom a long time service of the GPF.

31> Motor Angle Calibration
This function is used to perform the motor angle calibration when the rotorposition detected by the motor angle position sensor is different from theactual rotor field position.

ECU CodingCustomize Your Car in Minutes
Changing settings to fit your needs; Refrash hidden features; Disable car’s annoying functions

01 – Request Current Powertrain Diagnostic Data

02 – Request Powertrain Freeze Frame Data

03 – Request Emission-Related Diagnostic Trouble Codes

04 – Clear/Reset Emission-Related Diagnostic Information

05 – Request Oxygen Sensor Monitoring Test Results

06 – Request On-Board Monitoring Test Results for Specific Monitored Systems

07 – Request Emission-Related Diagnostic Trouble Codes Detected During Current or Last Completed Driving Cycle

08 – Request Control of On-Board System Test or Component

09 – Request Vehicle Information

0A – Request Emission-Related Diagnostic Trouble Codes with Permanent Status

LAUNCH X431CRP919E Car List:For Abarth, For Accura, For Alfa Remeo, For Audi, For BMW, For Bugatti, For Buick,  For Cadillac,  For Chevrolet, For Chrysler, For Citoren, For Dacia, For Daewoo, For Daihatsu, For Dodge, For Eurford, For Fiat, For Ford, For GM, For Gmsa, For Honda, For Hyundai, For Ifiniti, For Isuzu, For Jaguar,  For Jeep, For Kia, For Lancia, For Landrover, For Lexus, For Lincoln, For Mahindra(Indian),  For Maruti(Indian), For Maserati, For Mazda,  For Mercedes,  For Mini, For Mitsubishi, For Nissan, For Nissangtr, For Opel, For Peugeot, For Porsche, For Renault, For Renault Samsung, For Saab, For Seat, For Skoda, For Smart, For Sprinter, For Ssangyong, For Subaru, For Suzuki,  For Tata(Indian), For Tlisuzu, For Toyota, For Vauxhall, For Volvo, For VW, For VAZ
Product Specifications:

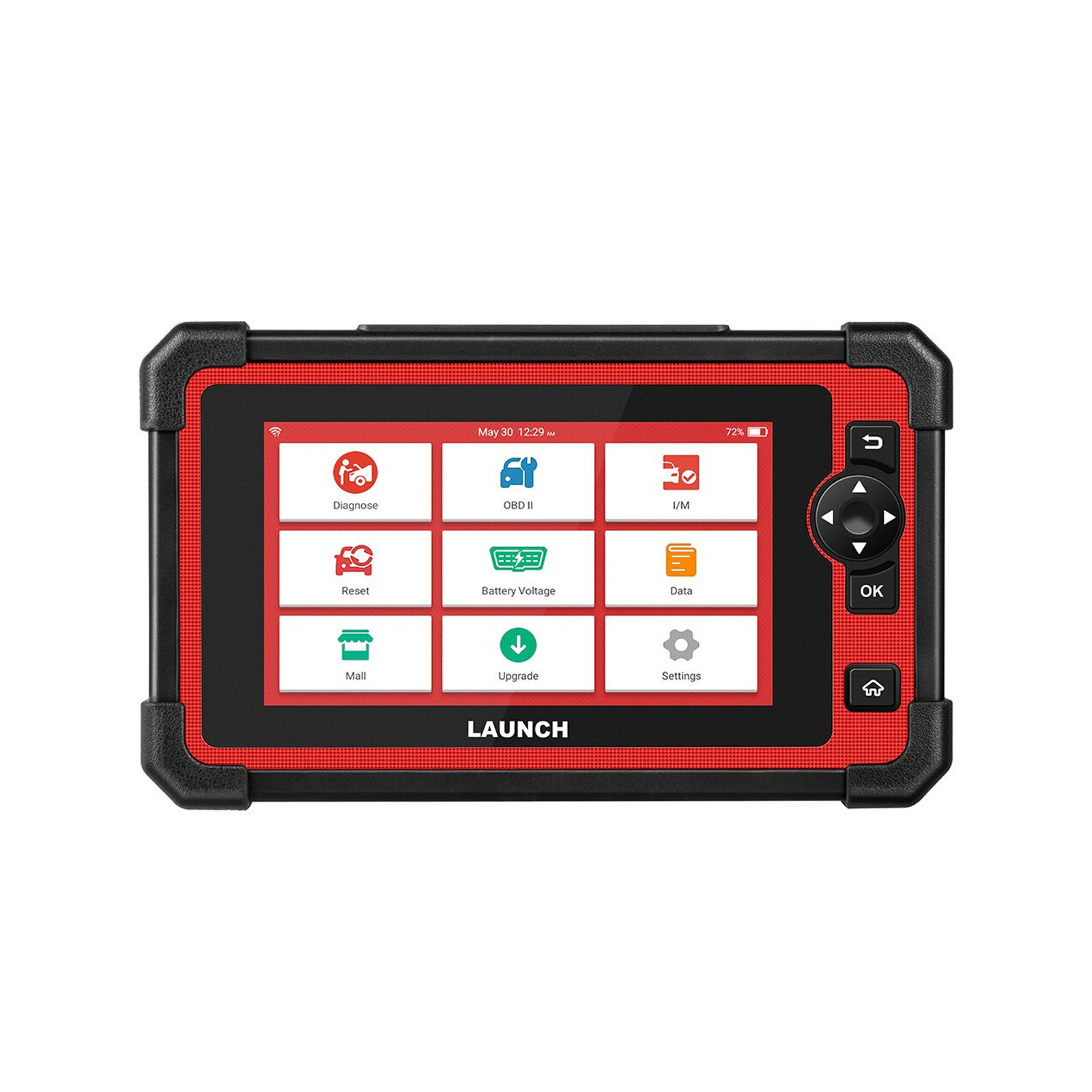

LCD: 7 inch touchscreen and Keyput

System : Android 7.1

Storage Temperature: -20 °C ~ 70°C

OBD II Interface Input Voltage: 9V-18V

Operating Temperature: -10 °C ~ 50°C

Dimension: 246X139.5X34mm

Battery: Built-in 6000 mAh Lithium Battery

Larger Memory Scanner with 2GB RAM & 16GB ROM
